Implementing Right-Click Integrations in Splunk
By: Eric Howell | Splunk Consultant
Splunk provides Admins the opportunity to build a huge variety of customizations, visualizations, apps, and a near-infinitude of different options to finely tune your Splunk experience and have it best suit your needs. There is a use case and a solution for almost any task you can throw at Splunk. A use case that has been brought up frequently is to implement a “Right-Click Integration” to allow information from Splunk to be passed to another tool. Originally, this seemed a daunting task that could require the implementation of custom java script or a unique python script to solve for. Ultimately, the solution was much simpler and the logic is already found in Splunk – Workflow Actions!
Workflow actions allow for Splunk to perform a variety of tasks against available web resources for information found in ingested field/value pairs. They can be very easy to set up either through the UI or by deploying a workflow_actions.conf, as best depends on the size of your Splunk environment, and they offer quite a bit of additional functionality. Utilizing this functionality, your “Right-Click” integration may require an extra click, but it will be fully functional and should be fully serviceable.
Leveraging Workflow Actions to Pass Values and Fields
As discussed above, to set up a workflow action, an admin can leverage the WebUI on one of the Search Heads in an environment or deploy the workflow_actions.conf file as appropriate. This will allow a user to expand an event and pass a value from a field to an external source. In the examples below, we will use VirusTotal as an example.
For this example, we will be posting the value of a field to VirusTotal, allowing us to search their IOC database and verify if the value we are passing is a known, bad entity.

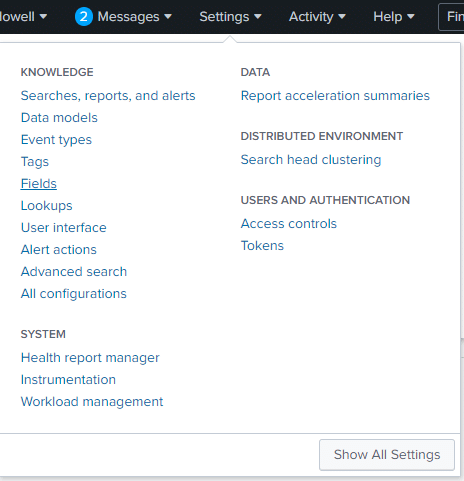

- Navigate to the Settings Dropdown in the Splunk navigator (In the top right by default) and select Fields under Knowledge

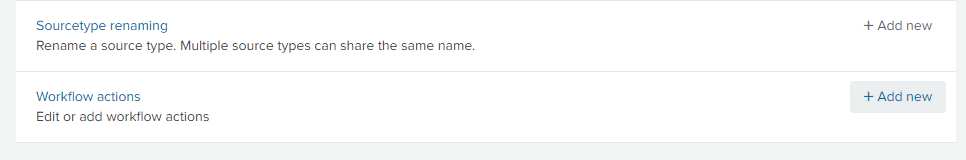

2. Next, you will select “Add new” in the “Workflow actions” category

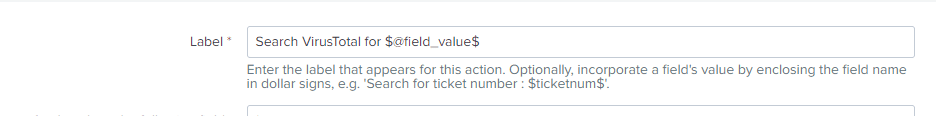

3. This next step encompasses what this workflow action will do. We begin with creating a Label for the action, which will be what users see when they move to access it. Note, you can leverage tokens in this descriptor to input values dynamically, based on what is clicked. In the case here, it will show the specific value that is being presented to VirusTotal.
4. Then you will indicate, in a comma-separated list, the fields that this workflow action can apply to. Leaving this blank will appear in all field menus.

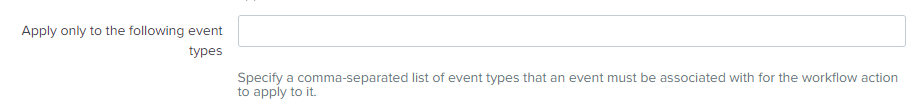

5. If needed, the next step will be to select which eventtypes this workflow_action is applicable for. For additional reading on eventtypes: Follow this Link
a. Eventtypes are categorizations of data input by the user or an admin. An example would be when a specific IP address is found in your web data (sourcetype=access_combined src_ip=127.0.0.1), and you want to apply specific categorization to data that meets that criteria so that it appears with a new field/value pair (e.g. eventtype=local_access)

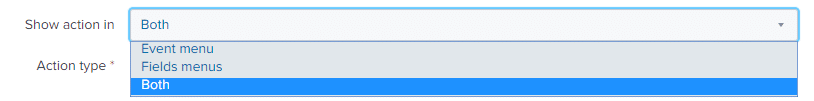

6. Next you will choose if the action is available in the Event Menu, Fields Menu, or both. This selection is a dropdown. Additional reading available here: Follow this Link
a. Event Menu – Will allow for you to apply this workflow action on the whole event. When an event returned by your search is expanded, the “Event Actions” dropdown will hold any workflow action with “Event Menu” selected here.
b. Fields Menus – Similar to the above, on an expanded event, the workflow action can be accessed by clicking the dropdown under “Action” in the list of included fields to allow one to apply the workflow action directly to the value of a specific field.
7. Next is to choose the Action type – meaning whether the workflow action acts as a “link” to another web location or whether it will run another “search”
8. The next step is configuring the properties based on which of the above Action Types was chosen

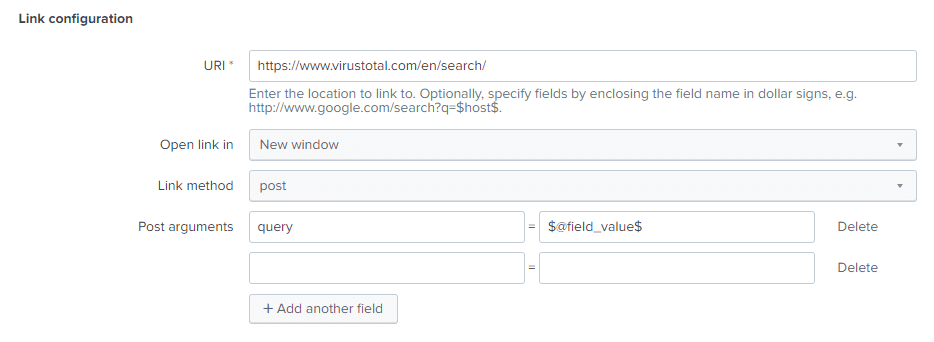

a. Link Configuration – Allows you to specify a URI (also accepts tokens), decide whether to open the link in a new window, select whether you intend to utilize a POST or GET method, and which arguments to pass to the web site.

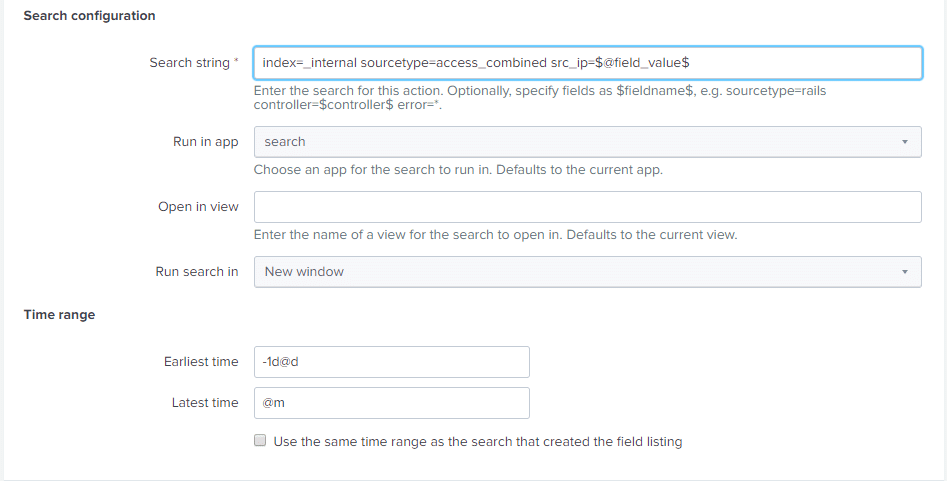

b. Search Configuration – Allows you to specify a search string (token-friendly), dictate which app to run the search in, determine a name of a view (page) for the search to open in, whether to run the search in the same window, and input a timeframe.
9. Next click Save

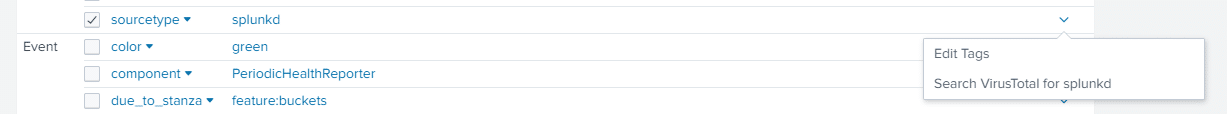

Your workflow action is ready to test. Here is an example of what you can see when looking in an event view with an expanded event.
Deploying a workflow_actions.conf
Like most other configuration files, workflow_actions.conf is easily deployed via the method of your choosing (manually, scripted, or through the use of the Deployer). Below is what will be generated by Splunk in $SPLUNK_HOME/etc/system/local when created through the web UI:
display_location = both
label = Search VirusTotal for $@field_value$
link.method = post
link.uri = https://www.virustotal.com/en/search/
link.target = blank
link.postargs.1.key = query
link.postargs.1.value = $@field_value$
type = link
This same information is deployable in an app of your choosing to $SPLUNK_HOME/etc/apps/ as appropriate for environments with clustered Search Heads or through other means of configuration management.
There are a wide variety of possible options with the stanza, and I recommend reviewing Splunk’s documentation regarding the specific .conf file here:
Leveraging your workflow_actions with older versions of Splunk Enterprise Security
If you are utilizing a version of the Splunk Enterprise Security app prior to 5.3, even if your workflow actions have global permissions, the app will not import configurations from others unless they follow a strict naming convention. If you want your workflow action to be accessible from the Incident Review dashboard, for example, you will need to make sure your app follows the one of these naming conventions:
