By: Pete Chen | Splunk Practice Team Lead

Splunk can be a powerful tool in cybersecurity, infrastructure monitoring, and forensic investigations. While it’s great to use in the office, after-hour incidents require the ability to have data available immediately. Since most people carry a mobile device, such as a cell phone or a tablet, it’s easy to see how having dashboards and alerts on a mobile device can help bridge the information gap.

Splunk Mobile brings the power of Splunk dashboards to mobile devices, powered by Splunk Cloud Gateway. While Splunk Mobile is installed on a mobile device, Splunk Cloud Gateway feeds the mobile app from Splunk Enterprise. Between the two applications is Splunk’s AWS-hosted Cloud Bridge. Traffic between Splunk Enterprise and the mobile device is protected by TLS 1.2 encryption.

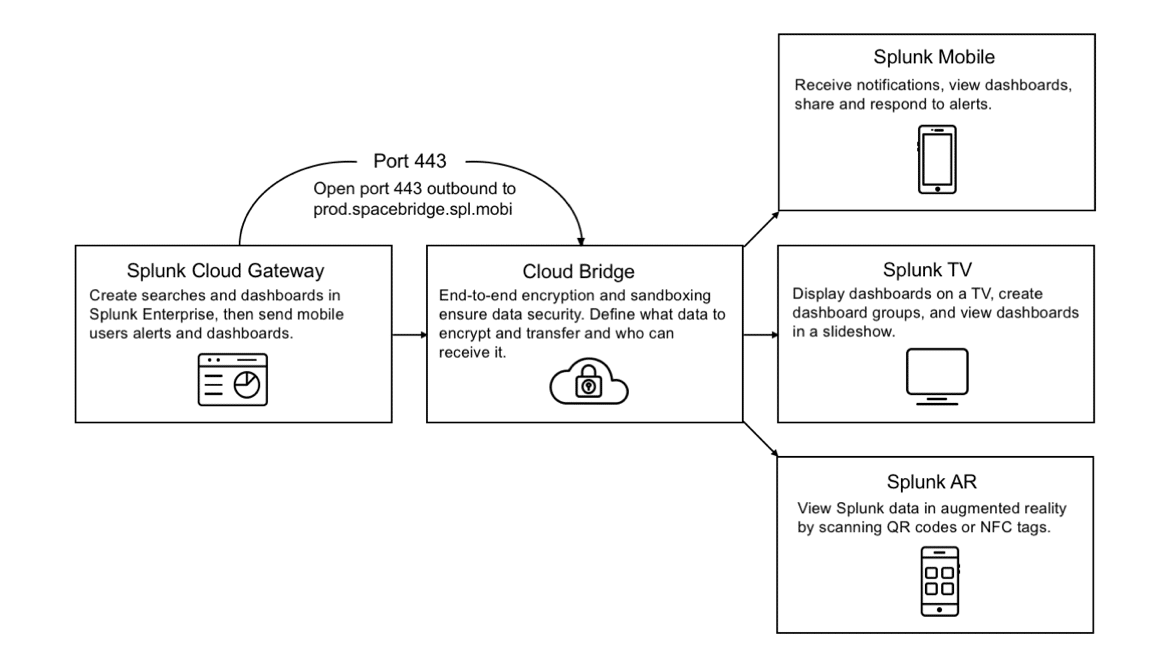

Architecture from Splunk

Splunk Cloud Gateway

Software Download	https://splunkbase.splunk.com/app/4250/
Documentation	https://docs.splunk.com/Documentation/Gateway

Splunk Cloud Gateway is a standard app found on Splunkbase (link above). It can be installed through the User Interface (UI), or by unpacking the file to <SPLUNK_HOME>/etc/apps/. When installed through the UI, Splunk will prompt for a restart once installation is complete. Otherwise, restart Splunk once the installation package has been unpacked into the Apps folder.

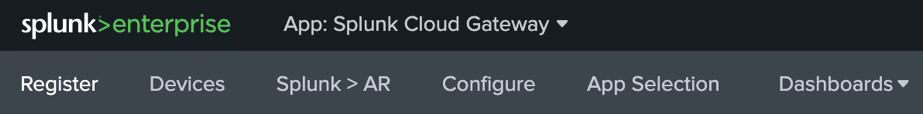

After restart, Splunk Cloud Gateway will appear as an app on Splunk Web. Browse to the app, and these are the pages available in the app:

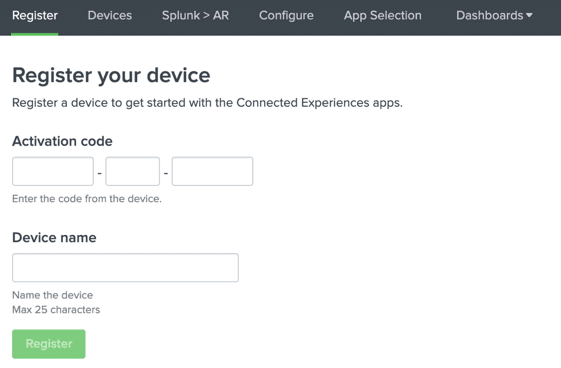

The first page allows for devices to be manually registered. When Splunk Mobile is opened for the first time (or on a device not registered to another Splunk Cloud Gateway instance), an activation code will appear at the center of the display. That code can be used to register the device on Splunk. The “Device Name” field can be any value, used to identify that particular device. It’s helpful to identify the main user of the device and the type of device.

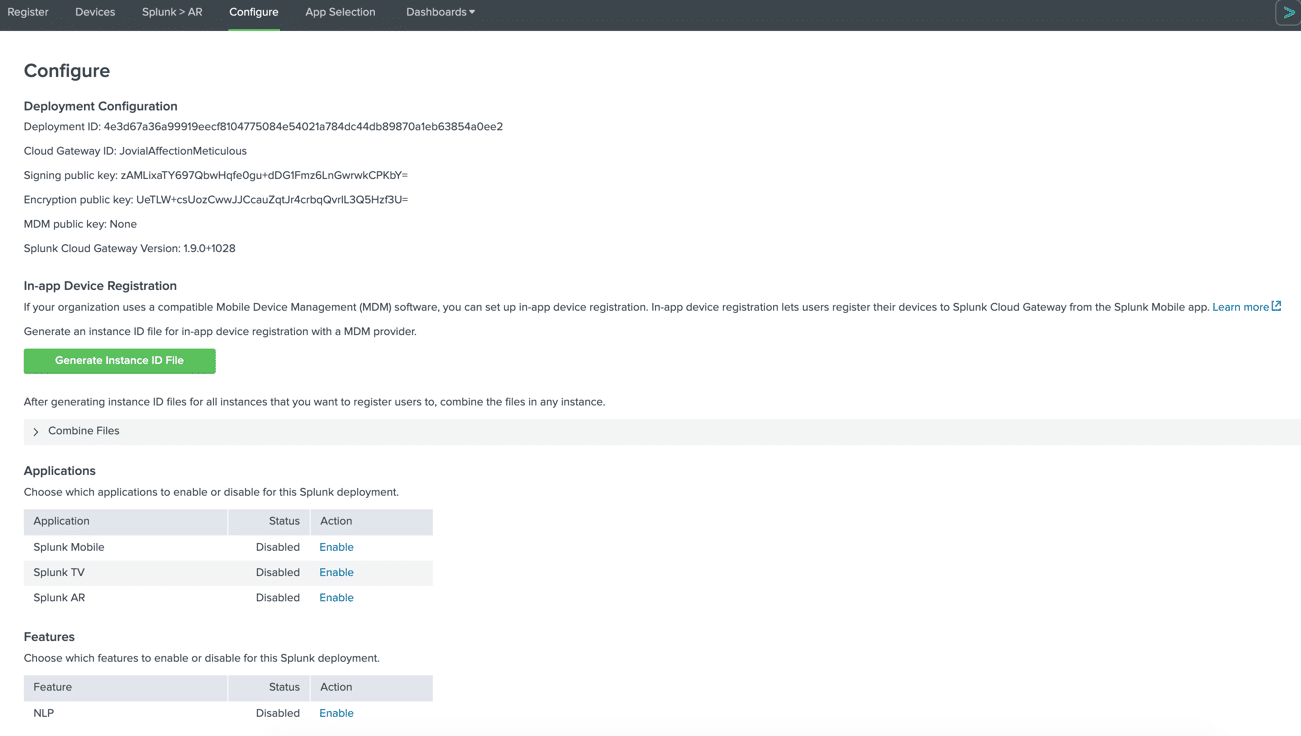

Skipping over Devices until a device is registered, and putting aside Splunk > AR for another time, the next important section is the “Configure” tab. At the top of the page, all the deployment configurations are listed. The Cloud Gateway ID can be modified through a configuration file to better reflect the environment. A configuration file can be downloaded for a Mobile Device Manager (MDM). This is also where the various products associated with Splunk Connected Experiences can be enabled.

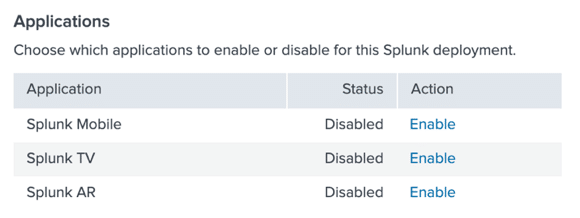

In the Application section, look for Splunk Mobile. Under the Action column, click on Enable. This must be done before a device can be registered.

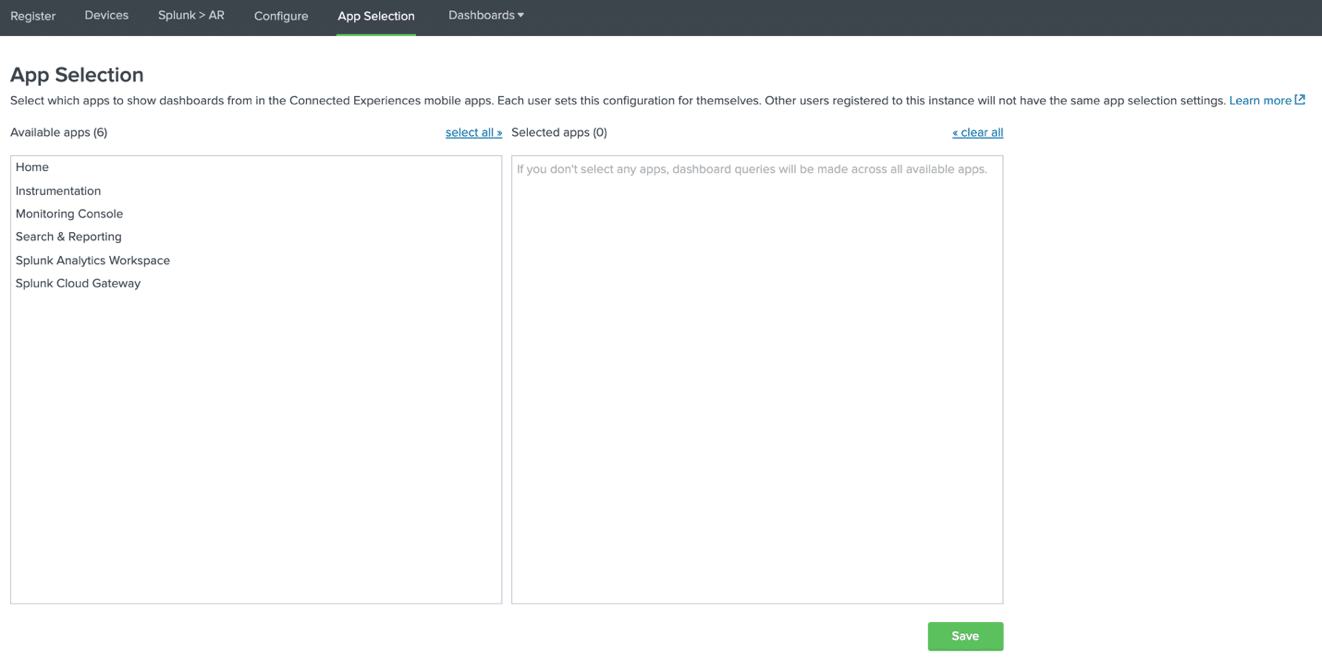

The App Selection Tab is where apps can be selected, based on each user’s preference, to determine which dashboards are visible through Splunk Mobile. When no apps are selected, all available dashboards are displayed. Select the apps desired by clicking them from the left panel, and they will appear on the right panel. Be sure to click save to commit the changes.

A couple of things to point out in this section.

Again, if an app is not selected, all available dashboards to the user will appear on Splunk Mobile.
Management of apps is based on the user, not centrally managed. During the registration of a device, a user must log in to authenticate. The apps selected in this page will be the same for all devices registered under this user.
Even if apps are specified, all dashboards set with global permissions will still be visible to the user.
To eliminate all dashboards and control what is viewable requires setting all dashboards to app-only permissions, and creating a generic app without dashboards. When this app is selected, and after all dashboards are converted to app-only permissions, no dashboards will appear.

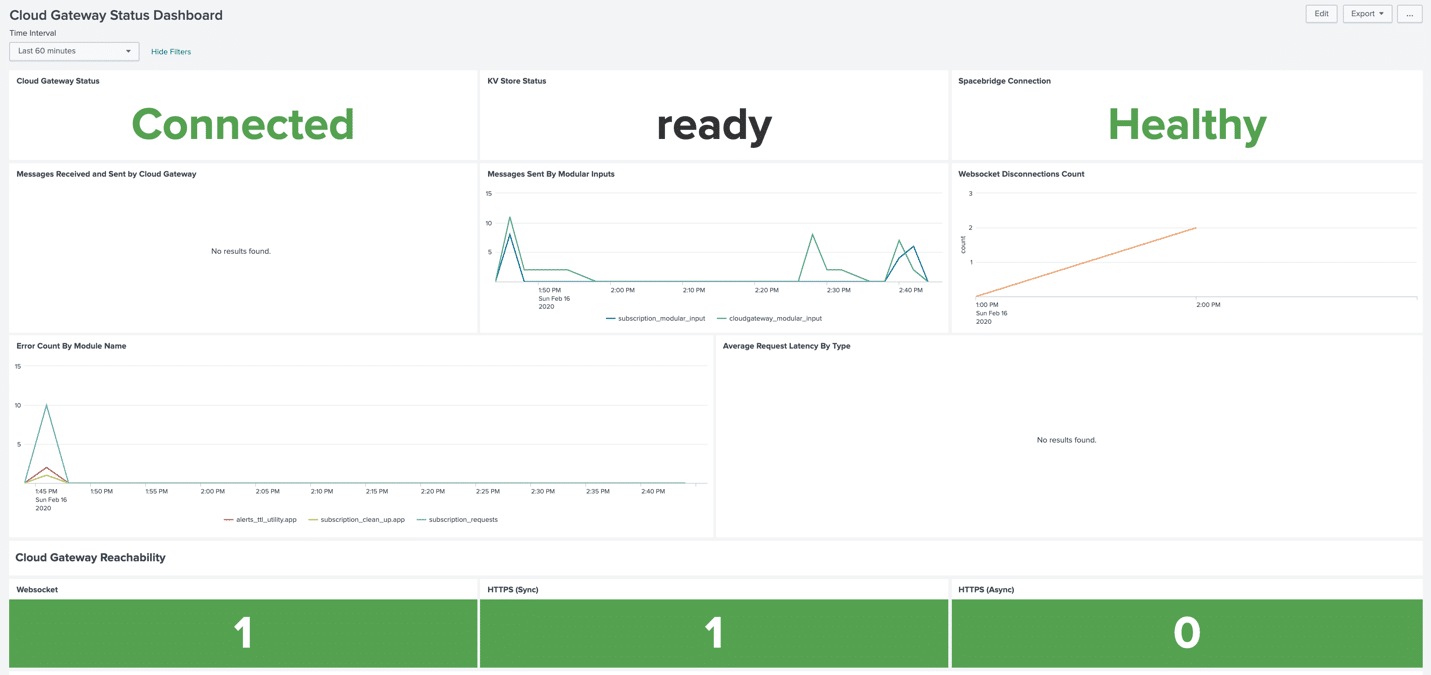

The final tab is the dashboard for Splunk Cloud Gateway. This dashboard shows the status of the app, and provides metrics of usage. The top three panels may be the most important when first installing Cloud Gateway. If the service doesn’t seem to be working correctly, these three panels will help in troubleshooting the service.

Splunk Mobile

Google Play Store	https://play.google.com/store/apps/details?id=com.splunk.android.alerts
Apple App Store	https://apps.apple.com/us/app/splunk-mobile/id1420299852

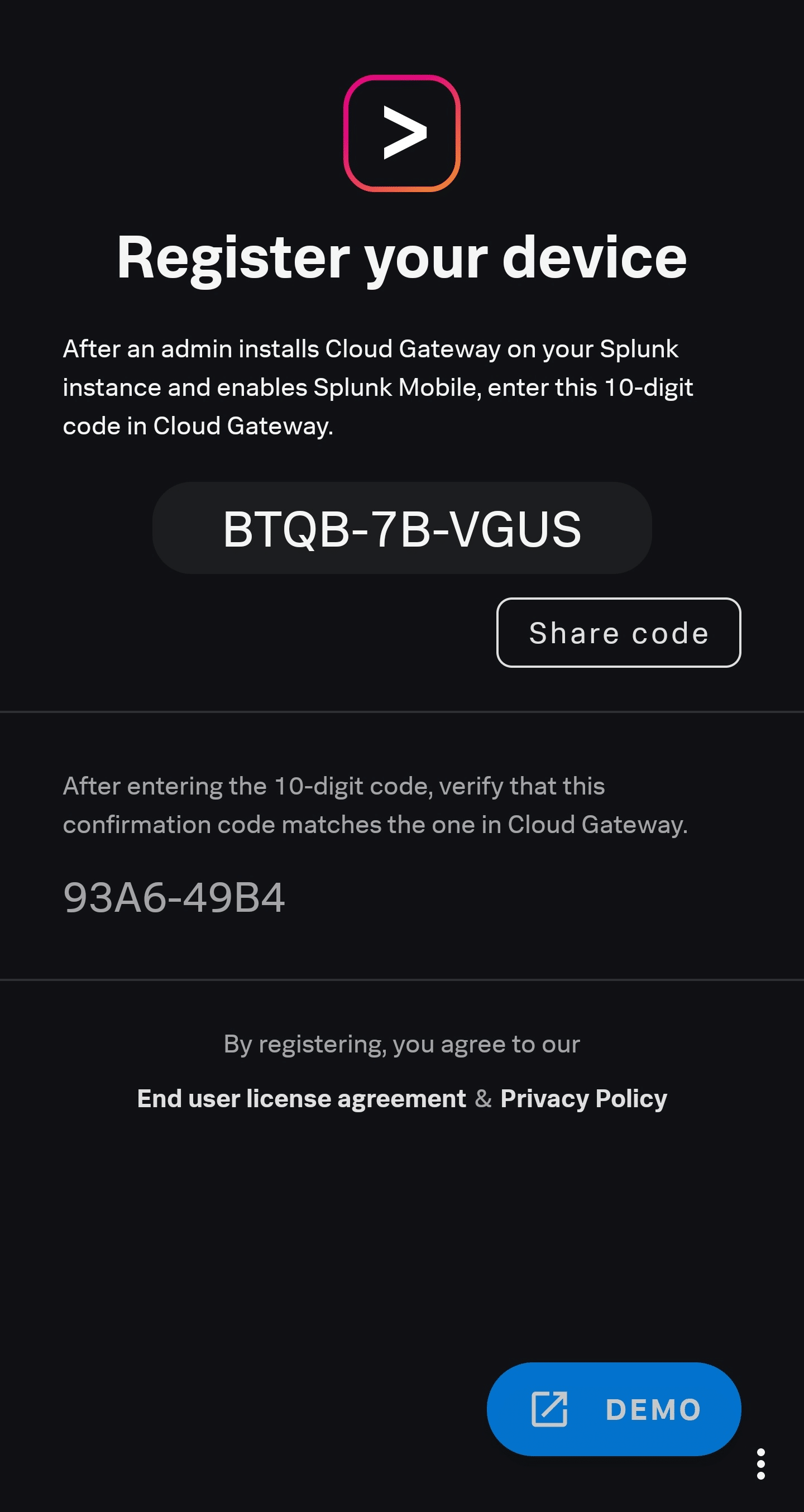

Installing Splunk Mobile on a mobile device is as simple as going to the app store, and having the device set up the app. Once the app is ready, launching the app will bring up a registration page. On this page, there is a code needed to register the device with Splunk Cloud Gateway. Below is a secondary code. This is used to verify with Cloud Gateway, making sure the device is registered with the correct encryption key.

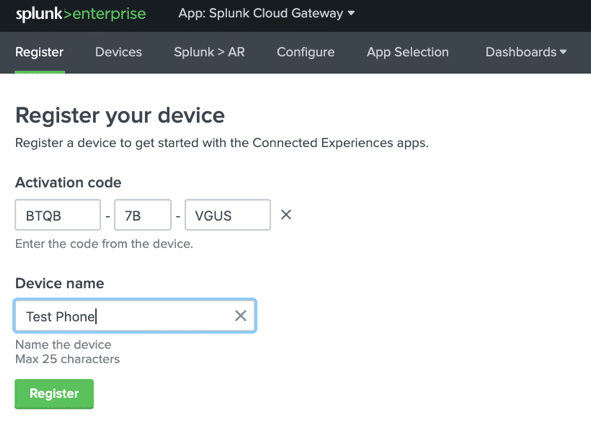

With the code above, return to Splunk Cloud Gateway, and register the device. Type in the activation code from Splunk Mobile. Enter in a device name, as explained above. Click on “Register” to continue.

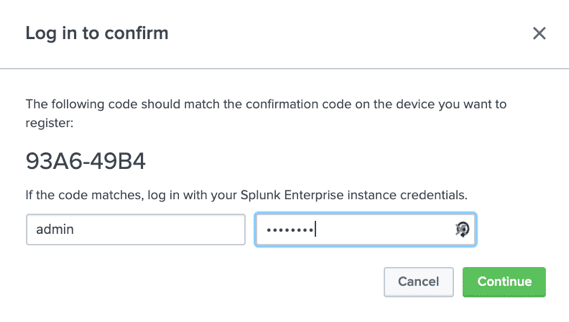

Validate the confirmation code displayed in the UI with the code displayed on the device. If the codes don’t match, stop the registration process. If the codes do match, enter credentials for Splunk, and click “Continue”.

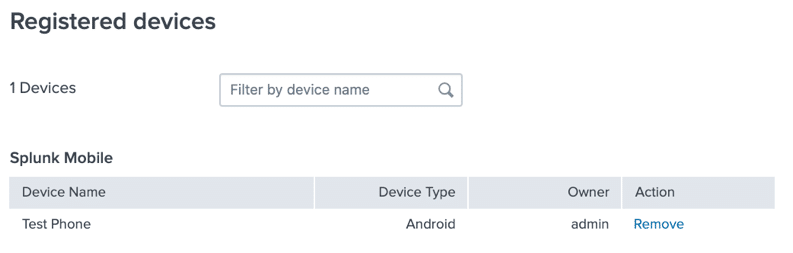

At this point, the device is registered with Splunk Cloud Gateway. Validate the device name in the Registered Devices page. Make sure the Device Type, and the Owner matches the device and user. If necessary, “Remove” is available to remove a device from Cloud Gateway.

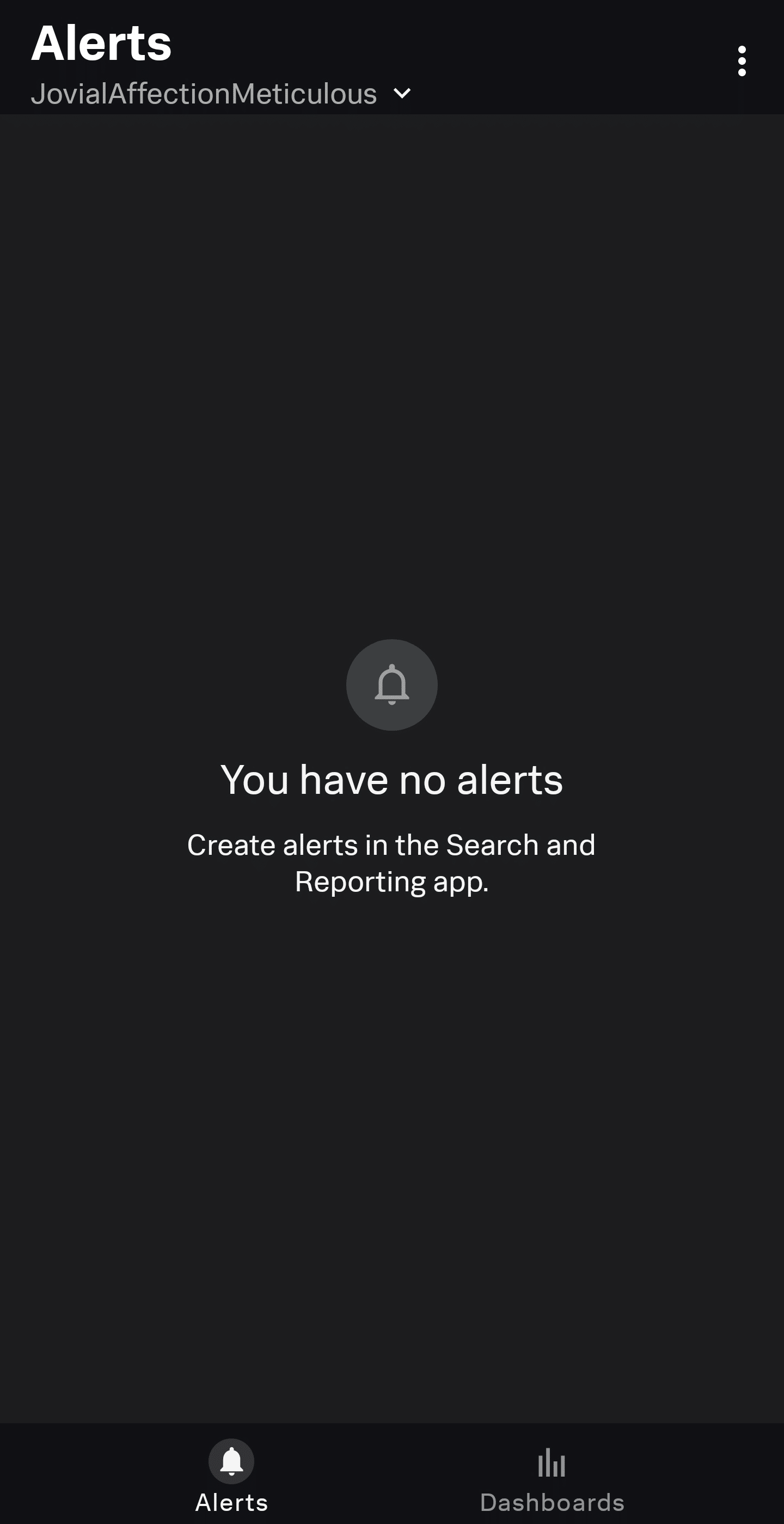

From a mobile perspective, the initial page displayed is the list of potential alerts.

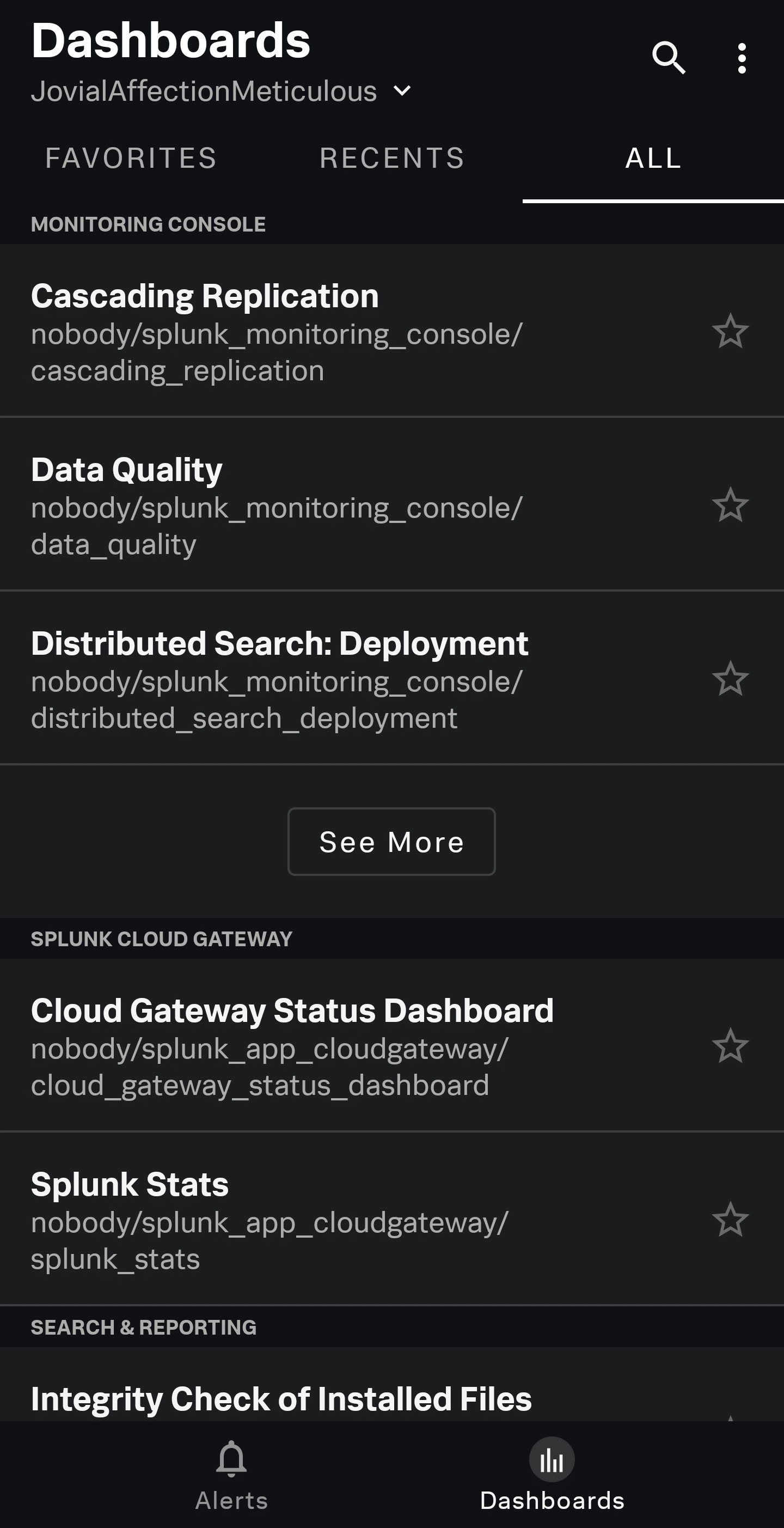

At the bottom of the screen, tap on “Dashboards” to see the list of dashboards available to the mobile device. Without any additional configuration, all available Splunk dashboards should appear in the list. Click on any dashboard.

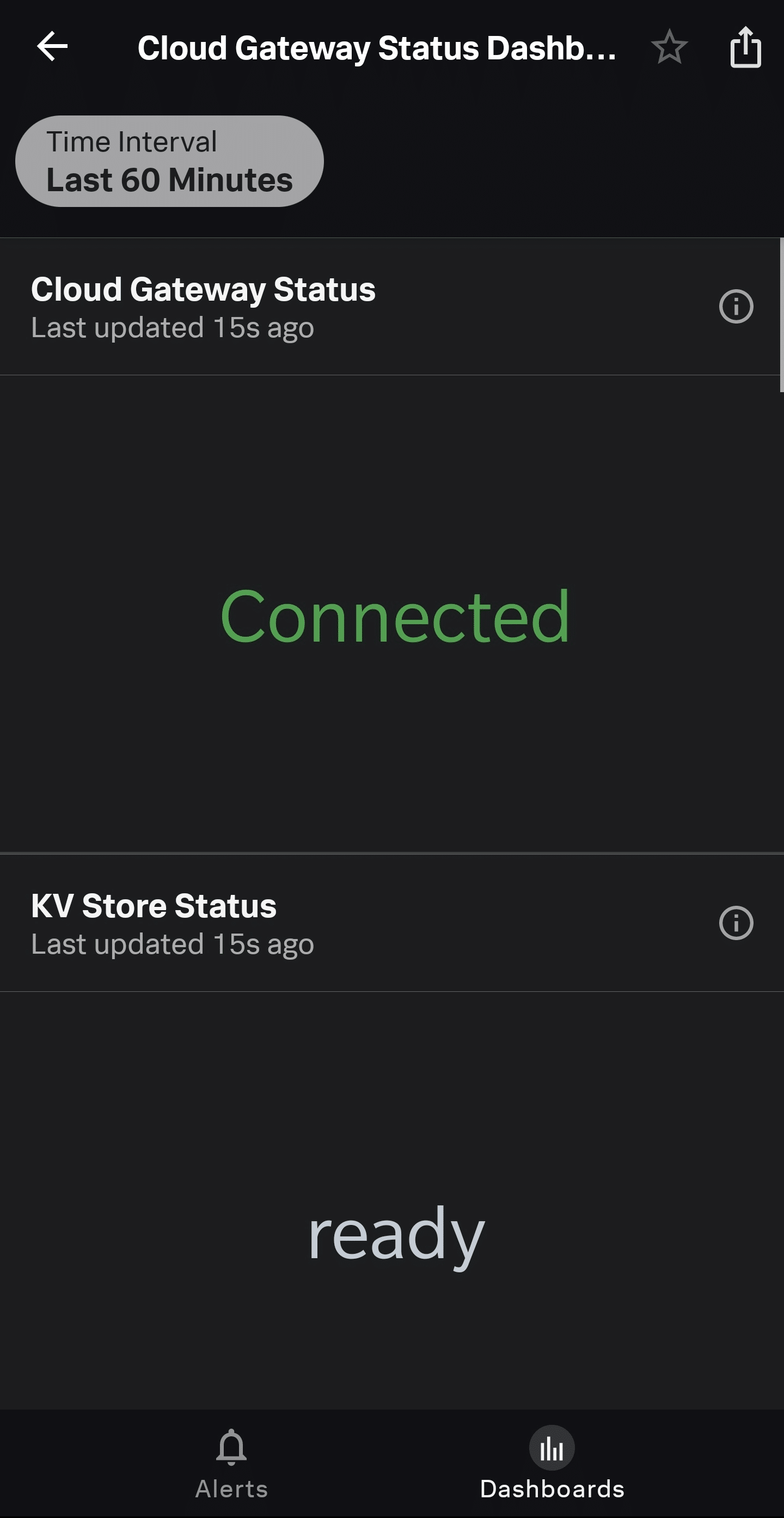

As an example, when the Cloud Gateway Status Dashboard is selected, the dashboard opens and allows for a time-selector at the top of the page. The panels available from the UI are displayed in a single column on the mobile device.

Points to Consider

Now that Splunk Mobile and Splunk Cloud Gateway are configured, and ready to be used, here are some points to consider in an Enterprise deployment.

When installing on a search head cluster, Splunk Cloud Gateway must be installed on the cluster captain. The captain runs some of the scripts necessary to connect Cloud Gateway to the Spacebridge.
All dashboards set with global permissions will appear. To limit visibility, set dashboard permissions to app-only or private.
During device registration, the credentials used will determine the dashboards and alerts available to the device. Configuration is user-based, not centrally controlled.
Trellis is not a supported feature of Splunk Mobile. Dashboards with panels using trellis will need to be reconfigured.
Panel sizing and scaling is not adjustable at this time. Some dashboard re-design may be necessary to tell the best story.
Pay special attention to how long dashboards take to load. From a mobile perspective, dashboards will need to load faster for the mobile user.
